Audible & Visual Warning Devices

Audible & Visual Warning Devices

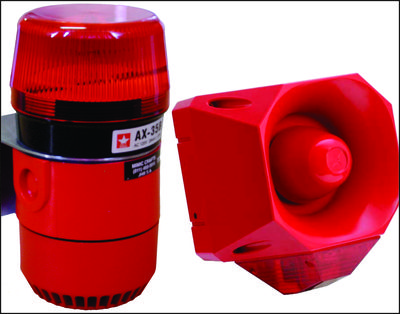

MIMIC COMPONENTS have introduced a convenient and compact audio-visual alarm that combines a super-bright 20mm LED and a penetrating sounder in a convenient wall mount box.
Units are available in surface mount box (as per diag.).  Custom units can be made for special requirements with silk-screened or engraved text can be supplied.
The unit consists of:
• Enclosure: 130x69x44mm
• Sound output of 105dB at 30cm
• Frequency of 2.9KHZ
• Continuous or Intermittent
• 12V, 24V DC or 220V AC.
• Current consumption is 20mA at 24VDC
• Approximated LED life span of 15 years
• Super-Red 20mm dome led (Yellow or Green also available - The only approved LED for internal use by the Free State Province).
The standard unit has a steady on LED and continuous tone sounder, but on special order MIMIC COMPONENTS can supply variations to the standard, e.g. steady LED with intermittent sounder etc...

Click here for more Product Details from Mimic Components CC...
