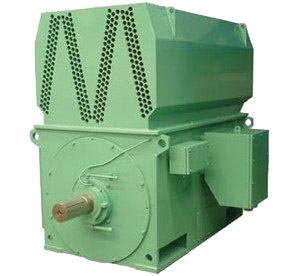

Medium Voltage Motors

Medium Voltage Motors

We supply a wide range of Medium Voltage Motors 185kW - 20 000kW.

Y Series (Large) Medium Voltage Motors

Features

    Kilowatt range: 630kW – 20 000kW
    Frame size: 710 – 1000
    Speed: 2, 4, 6, 8, 10 & 12 Poles
    Voltage: 3.3kV, 6.6kV & 11kV (+-10%)
    Enclosure: IP23
    Cooling: IC01
    Mounting: Foot or Flange – Vertical or Horizontal

Y/YKS Series Medium Voltage Motors

Features

    Kilowatt range: 220kW – 20 000kW
    Frame size: 450 – 1000
    Speed: 2, 4, 6, 8, 10 & 12 Poles
    Voltage: 3.3kV, 6.6kV & 11kV (+-10%)
    Enclosure: IP23, IP55 CACA
    Cooling: IC01 & IC611
    Mounting: Foot or Flange – Vertical or Horizontal

Y2-Series Compact TEFC Medium Voltage Motors

    Kilowatt range: 185kW – 2500kW
    Frame size: 355 – 560
    Speed: 2, 4, 6 & 8 Poles
    Voltage: 3.3kV, 6.6kV & 11kV (+-10%)
    Enclosure: TEFC / IP55
    Cooling: IC01, IC411 & IC611
    Mounting: Foot or Flange – Vertical or Horizontal

YKS Series (Large)  Medium Voltage Motors

Features

    Kilowatt range: 630kW – 20 000kW
    Frame size: 710 – 1000
    Speed: 2, 4, 6, 8, 10 & 12 Poles
    Voltage: 3.3kV, 6.6kV & 11kV (+-10%)
    Enclosure: IP55, CACA
    Cooling: IC01, IC411 & IC611
    Mounting: Foot or Flange – Vertical or Horizontal


Click here for more Product Details from WEM Electric Motors & Drives (Pty) Ltd...
