Bulk Technik cc

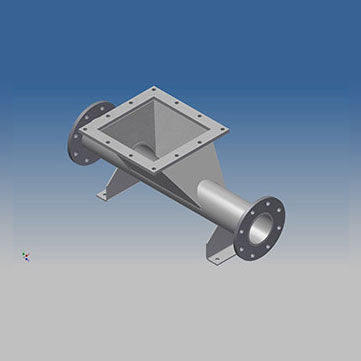

The Bulk Technik pneumatic conveying feeding tees are used to feed fine powder into a pneumatic conveying line. The feeding tees have been designed so that there is a small pressure drop across the conveying direction which at the same time results in reduced turbulence. The turbulence, combined with an abrasive product, results in excessive wear and ultimately failure of the part. Although Bulk Technik’s feeding tees have been optimised to minimise wear, it can not be prevented, therefore special feeding tees have been developed with reinforcing, liner plates as well as ceramic lining.
The feeding tees are supplied standard with SABS 1123-1000/3 flanges in the conveying direction, however, other flanges can also be supplied on request. Furthermore, our range of feeding tees can be supplied both with square or circular inlet flanges which can be custom made to match the corresponding flange of the material feeder. The feeding tees are supplied both in mild steel as well as stainless steel.
