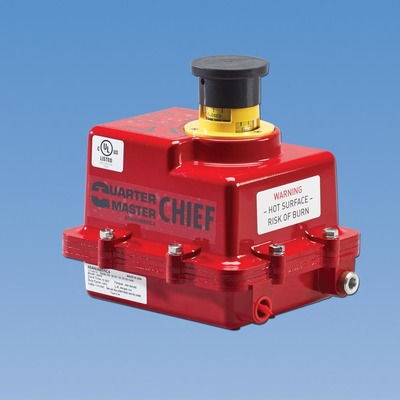

Series 92 Electric Actuator

Series 92 Electric Actuator

The Series 92 electric actuator is our primary electric actuator for most butterfly valves, and our larger ball valves, as well as multi-turn diaphragm and gate valves. Features include 2-SPDT switches, output torque, conduit size, torque switches (if applicable), heater (if applicable).

Ideal Applications Include: Remote locations, locations with no air supply, colder temperatures, larger valves


  • Sizes: S92, A92, B92, C92
  • Voltage: 120 VAC 1Ph 50/60 Hz (others available)
  • Conduit Entry: Two 1/2" NPT
  • Switches: Two single pole, double throw (SPDT)15 amp rated
  • Torque: 400-2000 in-lbs
  • Amp Draw: S92, B92 0.5A; A92 0.8A; C92 1.0A
  • Max Ambient Termperature: 150ºF
  • Cycle Time per 90º S92, A92: 15 seconds appx.; B92, C92: 32 seconds appx.


  • Motor: Reversing, brushless, capacitor run 115 VAC 50/60 Hz, single phase
  • Overload Protection: Integral thermal overload protection for motor winding with automatic reset
  • Gear Train: Permanently lubricated, solid gear that is Rockwell hardened
  • Corrosion Resistant Housing: thermally bonded baked powder coating with stainless steel trim
  • ISO mounting configuration
  • Conduit: Two ½" NPT conduit entries to eliminate cross feed between control, feedback, and power signals
  • Position Indication: Highly visible beacon position indicator for positive indication of valve position, even at a distance
  • Declutchable Manual Override: Pull up on indicator knob, insert 5/8" wrench onto flats and rotate in the appropriate direction (CCW for open, CW for closed). Models with handwheel override do not require a wrench. Simply push down on handwheel until engaged with cam and rotate.
  • Limit Switches: Standard End of travel limit switches can be used for light indication (not to be used with PLC for position confirmation)
  • Enclosure: Combination Type 4X, 7, and 9 enclosure for use in various environments.
  • Corrosion Resistant Mounting: Mounting is with PPG or stainless steel bracket, stainless steel coupling, and stainless steel hardware
  • CE Compliant Motor: All 115VAC and 230VAC motors are CE compliant and stamped as such
  • Extended Duty Cycles: Our extended duty cycles are ideal for modulating and high cycling applications
  • Output Torque: Series 92 Electric Actuators have an output torque range from 400 in-lbs to 2,000 in-lbs
  • RoHS Compliant
  • ABS Product Type Approved for use in Marine and Offshore Applications
  • UL 1203 certified for use in hazardous locations

Click here for more Product Details from Asahi/America...
