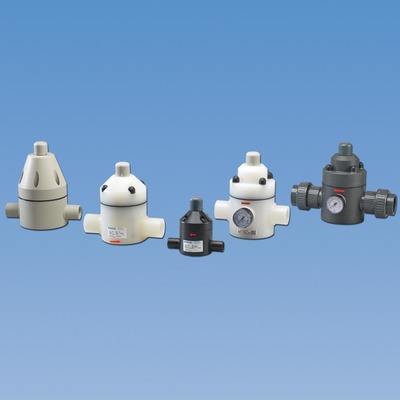

Frank Series Pressure Regulators and Pressure Relief Valves

Frank Series Pressure Regulators and Pressure Relief Valves

The Frank series of regulating products includes pressure regulators, back pressure regulators, pressure relief valves and manual flow meters. These high quality products provide superior pressure and flow control for high purity piping systems.

V82 Pressure Regulator

The popular V82 pressure regulator is a great value with its integrated gauge guard. This pressure regulator reduces pressure and dampens pulsations from pumps and upstream branch line cycling. The piston spring force balances outlet pressure by opening and closing the valve as the inlet pressure changes.

Size Range: PVDF 20-75mm (½" – 2-1/2"), PP 20-110mm (½" – 4")

V782 Pressure Regulator

The more precise V782 pressure regulator increases max flow rate and stability compared to V82 model. This regulator features a large control surface area for accurate pressure adjustments. The piston spring force balances outlet pressure by opening and closing the valve as the inlet pressure changes.

Size Range: 20-50mm (½" – 1-1/2")

V185/85 Pressure Relief Valve

The V185 features branch pressure relief to relieve excess pressures to a secondary line. This protects downstream items from dangerous peaks while allowing mainline flow to continue. The piston spring keeps the outlet closed until the set point pressure is achieved.

Size Range: PVDF 20-75mm (½" – 2-1/2"), PP 20-110mm (½" – 4")

V186/86 Back Pressure Regulator

The V186 Back Pressure Regulator maintains adequate downstream pressure as upstream pressure reduces from branch line cycling. The V186 may also be used as an inline pressure relief valve. The piston spring keeps the outlet closed until the set point pressure is achieved.

Size Range: PVDF 20-75mm (½" – 2-1/2"), PP 20-110mm (½" – 4")

Ideal Applications Include: UPW, WFI, RO/DI Systems, Semiconductor, Photovoltaic, Pharmaceutical, Biotech, Institutional, Laboratory Research, Nanotech

Click here for more Product Details from Asahi/America...
